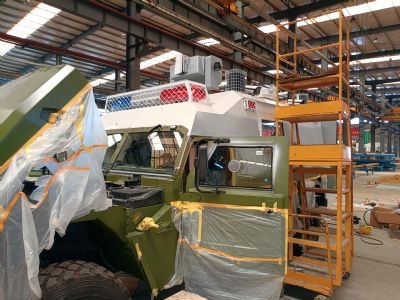

Wuxi Sicote Power Technology CO., Ltd. produce 3KW Belt Power System For Brave Warrior CTL181;
3KW Belt Power System For Brave Warrior CTL181 Tech Data
◆ Tech Data Of SICOTE Belt Alternator | {Need 1 belt alternator} Idle Power : 3.0KW | {Product Model:S4CT3000-CTL18X} | |||||
Alternator Model | Single Belt Alternator Tech Data | Control Model | |||||
S4C3000TD | Engine Speed | 750 RPM {Idle Speed} | 1000 RPM | 1300 RPM | 1600 RPM | 2000 RPM {Working} | S4C4000-4U-230 |
Alternator Voltage | Output Current | 53A | 56A | 60A | 67A | 72A | Controler Style |
DC 56 V | Output Power | 3.0KW { Idle Power } | 3.1KW | 3.4KW | 3.8KW | 4.0KW { Max Power } | 4U Standard Cabinet |
working temperature : -40℃ — +100℃; storage temperature : -40℃ — +70℃; relative humidity : 95±3% (at +40℃)
Cooling Method Of Belt Alternator :Air-cooled
|
|||||||
Meet the standard:GJB150.9A-2009 , GJB150.10A-2009 , GJB150.11A-2009 , GJB150.16A-2009 |
◆ Electrical Data Of Belt Power System※ Adequate idle power, no need to accelerate ※ {AC Voltage: 220/230/240Can Change} | ||||||||||||||||
AC Voltage | Frequency |
AC Voltage stability time |
Frequency stability time |
AC input |
Automatic switching |
Speed Device |
Remote Control |
UPS | Battery Data | Single Battery Size | ||||||
Ports | Protect | Function | Charge | Warning | AH | QTY | L | W | H | |||||||
230±2V | 50±0.1HZ | ≤1S | ≤3S | optional | optional | 38AH | 4 | 197 | 165 | 170 |
◆ List Of SICOTE Belt Power System | ||||||||||||||||
SICOTE Belt Alternator |
SICOTE Control System |
SANTAK Battery |
Converter Device |
DC To DC Device |
Frame | Pulley |
Tension Pulley QTY |
Guide Wheel QTY |
Bolt Nut |
Speed Device |
Power Cable |
Belt | ||||
QTY | Weight | QTY | Weight | AH | QTY | Weight | ||||||||||
1 PCS | 7.2Kg | 1 PCS | 35Kg | 38AH | 4 | 45.6Kg | 0 | 0 | 1 | 1 PCS | 1 PCS | 2 PCS | 1 | 0 | 1 | 2 PCS |
[Other instructions]: Users can download the information by the vehicle number in our website |
